Khoom Taw Qhia

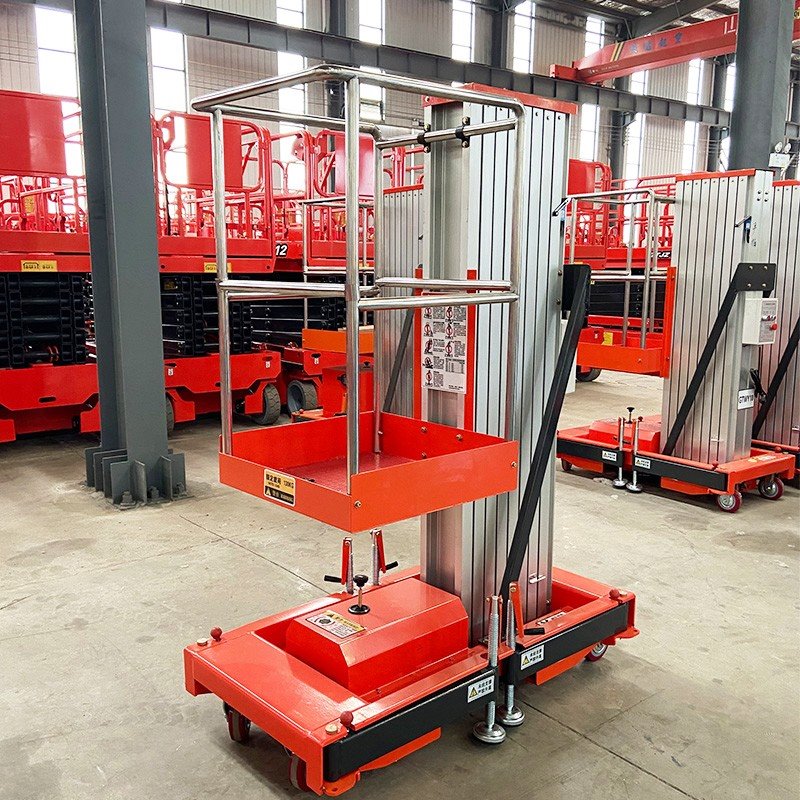

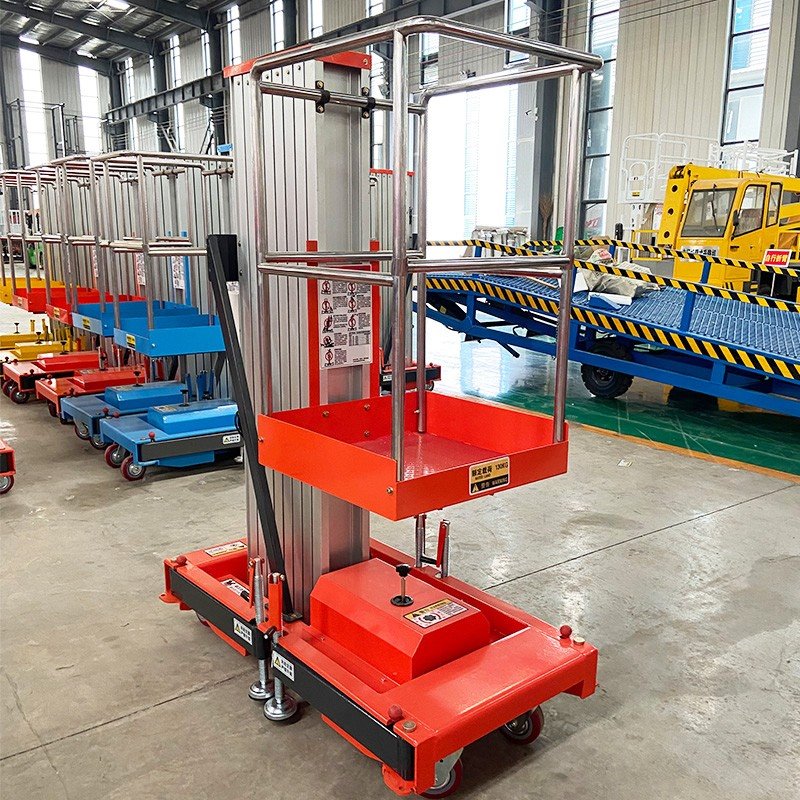

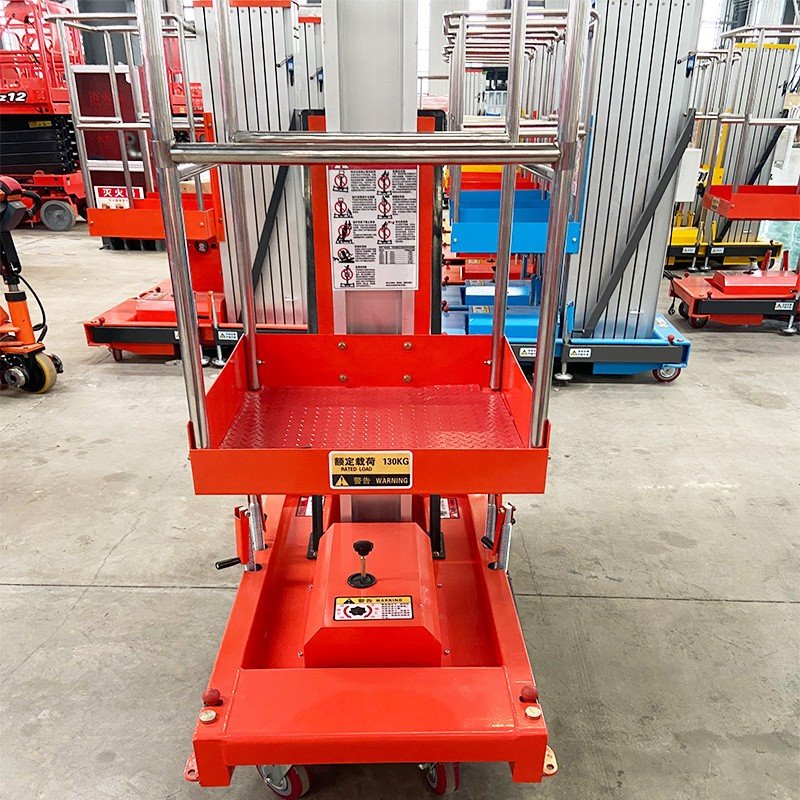

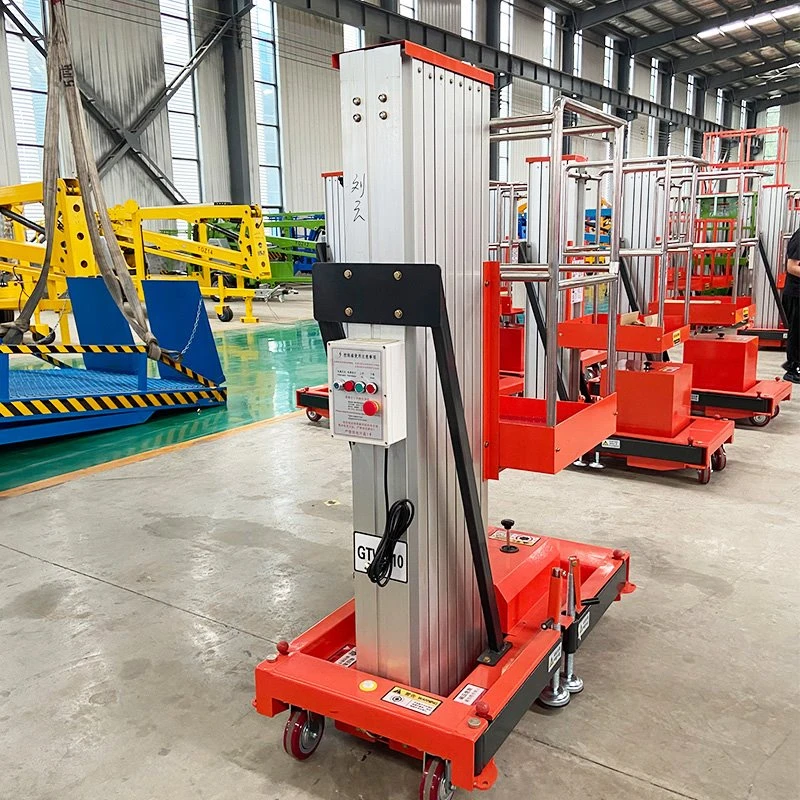

Lub portable ib leeg mast aluminium nqa lub rooj yog cov khoom siv ua haujlwm hnyav thiab ua haujlwm tau zoo, tshwj xeeb tshaj yog tsim los rau qhov chaw nqaim thiab siab -qhov chaw siab, kev sib koom ua ke lub teeb yuag, yoog raws thiab kev nyab xeeb. Ua los ntawm siab - lub zog aluminium alloy cov khoom, nws yog lub teeb yuag tsis tau ruaj khov, nrog kev tiv thaiv corrosion zoo thiab thauj khoom - cov kabmob muaj peev xwm, txo qhov hnyav tag nrho thaum ua haujlwm ruaj khov, ua kom yooj yim txav, thauj thiab khaws cia yam tsis muaj chaw ntau dhau. Nws ib leeg -kem qauv nta ib qho me me hneev taw, tso cai rau kev nkag mus tau yooj yim rau thaj chaw nqaim xws li txoj kev hauv tsev, kev cob qhia me me thiab cov chaw sab hauv tsev uas nyuaj rau kev nqa ib txwm siv mus txog.Tshwj xeeb nrog lub tshuab nqa hydraulic txhim khu kev qha, nws ua tiav du, ruaj khov thiab ntsiag to lifting, nrog rau qhov siab hloov kho (4m-} 12m kev ua haujlwm thiab kev ua haujlwm zoo li kev ua haujlwm. Tag nrho -cov ntaub thaiv npog thiab tiv thaiv- plam pedal muab kev tiv thaiv kev nyab xeeb, tiv thaiv kev sib tsoo thiab ua kom cov neeg ua haujlwm muaj kev nyab xeeb. Lub vaj huam sib luag ua haujlwm yog yooj yim rau kev khiav lag luam, ua rau ib tus neeg ua tiav txhua qhov haujlwm. Nws siv lub zog-txuag lub cev muaj zog, uas yog ib puag ncig tus phooj ywg thiab tsis muaj suab nrov, haum rau siv sab hauv tsev thiab sab nraum zoov. Nrog kev saib xyuas yooj yim, siv cov nqi qis dua thiab siv lub neej ntev.
Khoom Parameters
|
Qauv |
HLB 10-1 |
Roj lub tog raj kheej |
Hebei Hengyu HSG50/35 1lub tog raj kheej |
|
Qhov siab ua haujlwm siab tshaj plaws |
12m |
Lub log |
6 ntiv |
|
Qhov siab tshaj plaws platform |
10m |
Yam tsawg kawg nkaus hauv av clearance |
0.05m |
|
Safe ua hauj lwm load |
100 kg |
Lifting ceev |
4-6m / min |
|
Tag nrho qhov hnyav |
360kg ua |
Platform qhov ntev |
600 * 600 hli |
|
Tag nrho qhov ntev ntawm lub tshuab (ntev x dav x qhov siab) |
1330*830*2100 |
Rectangular raj |
100 * 50 * 3mm |
|
Leg deployment loj W * L |
1750 * 1950 hli |
chaw nres tsheb twj tso kua mis |
Anshan Lisheng |
|
Cov neeg ua haujlwm siab tshaj plaws |
1 |
Txhawb cov khoom siv pas nrig |
Aluminium alloy thickness 6.4 |
|
Wheelbase |
1.2m |
khoom siv hluav taws xob |
Chaw taws teeb tswj lub thawv faib khoom (qee yam khoom siv Delixi) |
|
Lifting lub cev muaj zog |
220V / 1.1kw |
Underframe |
Q235 steel phaj square yeeb nkab |

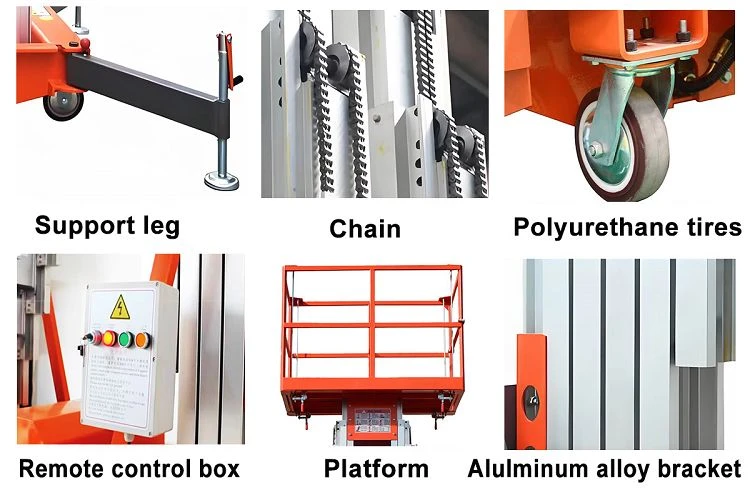

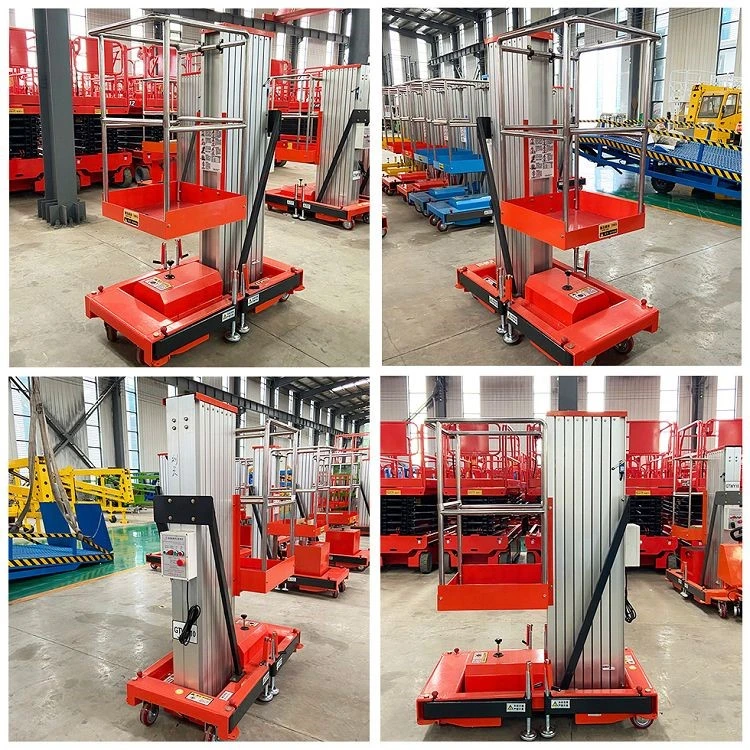

Khoom Paub meej
Khoom siv

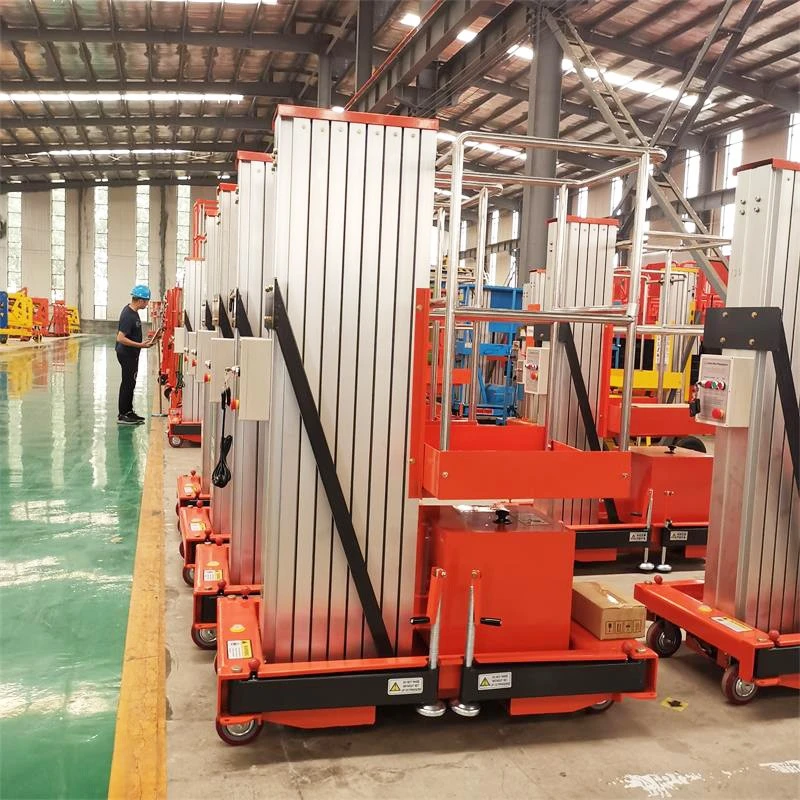

Tuam txhab Profile
Xa, Shipping Thiab Pab
FAQ
Q: Koj puas muaj kev pabcuam tom qab- muag?
A: Hu rau peb yog tias koj muaj lus nug lossis xav tau kev txhawb nqa. Peb yuav sim daws koj qhov teeb meem hauv 24 teev, thiab npaj cov khoom xa tuaj hauv 48 teev.Kev tshaj lij tom qab- kev muag khoom muag cov neeg ua haujlwm pabcuam
Q: Kuv puas tuaj yeem luam kuv LOGO ntawm lub tshuab nqa?
A: Yog. Thov qhia rau peb paub ua ntej peb cov khoom thiab xa koj lub siab pixel LOGO rau peb.
Q: Yuav ua li cas hloov lub tshuab nqa?
A: Nws feem ntau yog xa los ntawm hiav txwv. Plywood pob thiab LCL nyob rau hauv ib lub thawv 20'.
