Khoom Taw Qhia

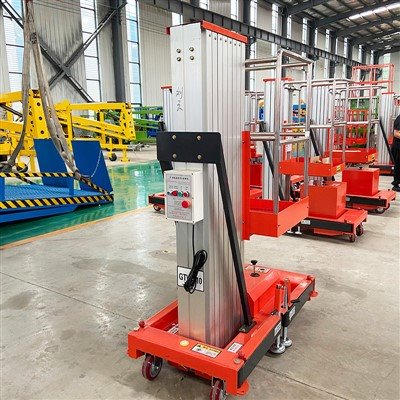

Aluminium alloy ib leeg mast txiv neej nqa muaj ntau yam zoo. Nws yog ua los ntawm aluminium alloy, uas yog lub teeb hauv qhov hnyav thiab siab zog, thiab yooj yim txav thiab nruab. Lub lifting yog du, kev ua haujlwm yooj yim thiab kev nyab xeeb yog qhov zoo. Cov tsos yog yooj yim thiab elegant, haum rau siv nyob rau hauv ntau qhov chaw xws li factories, warehouses, exhibition halls, thiab lwm yam, thiab muaj peev xwm ua tau zoo txhim kho kev ua hauj lwm efficiency.
Khoom Parameters
|
Qauv |
HLB08-1 |
Roj lub tog raj kheej |
Hebei Hengyu HSG50/35 1lub tog raj kheej |
|
Qhov siab ua haujlwm siab tshaj plaws |
10m |
Lub log |
6 ntiv |
|
Qhov siab tshaj plaws platform |
8m |
Yam tsawg kawg nkaus hauv av clearance |
0.05m |
|
Safe ua hauj lwm load |
120 kg |
Lifting ceev |
4-6m / min |
|
Tag nrho qhov hnyav |
300 kg |
Platform qhov ntev |
600 * 600 hli |
|
Tag nrho qhov ntev ntawm lub tshuab (ntev x dav x qhov siab) |
1250*830*1980 |
Rectangular raj |
100 * 50 * 3mm |
|
Leg deployment loj W * L |
1750 * 1950 hli |
chaw nres tsheb twj tso kua mis |
Anshan Lisheng |
|
Cov neeg ua haujlwm siab tshaj plaws |
1 |
Txhawb cov khoom siv pas nrig |
Aluminium alloy thickness 6.4 |
|
Wheelbase |
1.29m |
khoom siv hluav taws xob |
Chaw taws teeb tswj lub thawv faib khoom (qee yam khoom siv Delixi) |
|
Lifting lub cev muaj zog |
220V / 1.1kw |
Underframe |
Q235 steel phaj square yeeb nkab |
Khoom Paub meej
Khoom nta
1.Lub tshuab tag nrho yog lub teeb hauv qhov hnyav. Lub log universal hloov tau muaj kev txav mus los zoo, uas tsim nyog rau kev ua haujlwm ib leeg.
2.The aluminium alloy ib leeg mast txiv neej nqa yog ua los ntawm siab -lub zog aluminium alloy profiles.
3.Equipped nrog kab rov tav qhia.
4.Qhov compressive tsis kam ntawm kev kub siab steel hlau tubing muaj zog ntau dua li qhov siab tshaj plaws ntawm hydraulic system.
5.Double-chain kis tau tus mob muaj kev nyab xeeb thiab ruaj khov.
6.Cov qauv yog compact, thiab thauj me me. Nws tuaj yeem nkag mus rau lub elevator dav dav, kuj tuaj yeem hla lub qhov rooj thiab nqaim channel smoothly.
Khoom siv
Tuam txhab Profile
Nrog 10 xyoo dhau los ntawm kev tsim khoom siab -qhov chaw ua haujlwm siab, peb tau mob siab rau kev xa cov khoom siab tshaj - zoo, txhim khu kev qha khoom thiab kev pabcuam. Tsis zoo li cov tuam txhab lag luam, peb ua haujlwm peb tus kheej 30,000-square-meter Hoobkas nrog 300 tus neeg ua haujlwm txawj, ua kom muaj kev tswj xyuas tag nrho ntawm R&D, kev tsim khoom, thiab kev txhawb nqa tom qab muag kom tau raws li cov qauv kev nyab xeeb thiab kev ua tau zoo tshaj plaws
- Customization Capability - Peb muab cov kev daws teeb meem raws li koj qhov kev xav tau tshwj xeeb (xws li, kev ua haujlwm siab, lub peev xwm thauj khoom, ib puag ncig, thiab lwm yam), ua kom haum rau ntau yam kev lag luam.
- Direct Factory Advantages - Tsis muaj cov neeg nruab nrab, ua kom cov nqi sib tw, xa khoom sai, thiab lub sijhawm teb sai dua
- Quality Assurance - Cov txheej txheem ntau lawm thiab cov txheej txheem tswj xyuas nruj, nrog cov khoom lag luam tau lees paub thoob ntiaj teb cov qauv rau kev ua haujlwm zoo thiab kev nyab xeeb.
- Xaus-rau-Kev Pabcuam Xaus - Los ntawm kev tsim mus rau kev teeb tsa thiab kev cob qhia, peb muab ib qho - ntawm - ib qho kev txhawb nqa nrog kev txhawj xeeb- pub dawb tom qab - kev muag khoom.
Xa, Shipping Thiab Pab
Rau kev thauj mus los, peb muaj peb txoj hauv kev: Hiav txwv, huab cua, thiab av, thiab txhawb nqa ntau yam kev them nyiaj thiab ntau txoj kev thauj mus los.
Koj tuaj yeem tau txais lub tshuab ua haujlwm txhuas uas koj nyiam ntawm qhov chaw nres nkoj, thiab tau kawg koj tuaj yeem tau txais cov aluminium ua haujlwm platform ntawm koj lub qhov rooj.(tus nqi siab dua, tsis pom zoo), peb lav tias peb yuav tsis them tus nqi nruab nrab thiab cov nqi ntxiv uas tshaj tus nqi thauj khoom, peb tsuas yog xav kom koj tau txais qhov kev nyiam aluminium alloy ib leeg mast txiv neej nqa sai dua thiab nyiam dua!
FAQ
Q: Koj puas yog tuam txhab lag luam lossis lub Hoobkas?
A: Peb yog kev koom ua ke ntawm lub Hoobkas thiab kev lag luam, peb muaj peb tus kheej muag khoom zoo kuaj cov ntaub ntawv xa khoom tom qab muag.
Q: Koj puas muab kev pabcuam OEM, ODM?
A: Yog, rau cov khoom txheem peb kuj txais kev cai
Q: Yuav ua li cas txog lub sijhawm khoom xa tuaj?
A: 5-7 hnub los ntawm kev txiav txim feem ntau, yog tias koj xav tau ceev, thov qhia rau peb paub.
Q: Yuav ua li cas txog qhov kev pab cuam tom qab muag?
A: Peb cog lus 1 xyoo lav thiab lub neej -lub sijhawm kev txhawb nqa. Peb muaj lub zog tom qab- pab pawg muag khoom, lub tuam txhab kev lag luam yuav muab online tom qab- kev muag khoom, yog tias tsim nyog tuaj yeem muab cov lus qhia hauv video.
