Khoom Taw Qhia

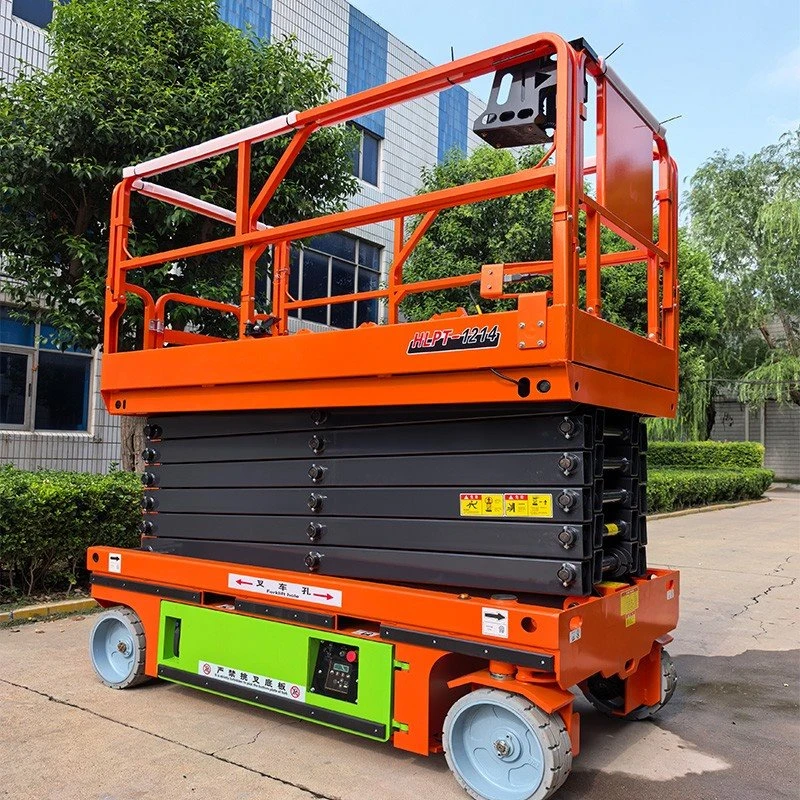

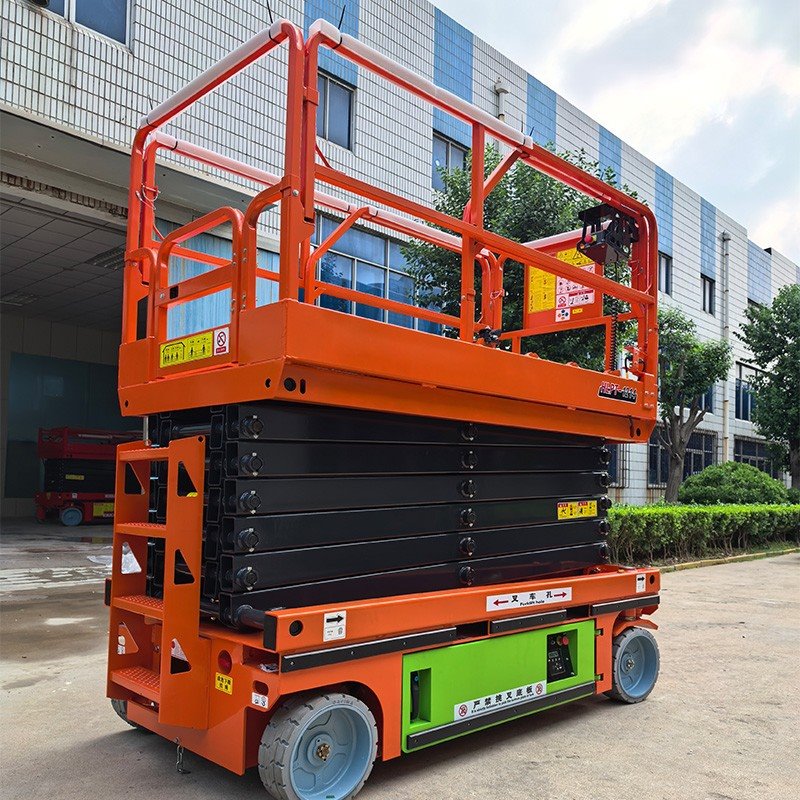

Lub ntuj jack nws tus kheej propelled txiab nqa nta ib tug X-zoo li tus txiab mechanism, kom ntseeg tau du thiab khov kho tsis muaj wobbling. Tsim los ntawm siab- lub zog steel, chav tsev yog txuas ntxiv nrog cov txheej txheem hydraulic tsis siv neeg, lub platform tsis yog- plam, thiab adjustable guardrails los txhim kho kev ua haujlwm kev nyab xeeb. Haum rau ntau yam kev siv nrog rau kev kho kom zoo nkauj sab hauv, lub koom haum warehouse shelving, thiab cov khoom siv tu, nws muaj kev ua haujlwm yooj yim, hloov tau yooj yim, thiab kev ruaj ntseg tshwj xeeb.
Khoom Parameters
|
Qauv |
HLPT-1214 |
Wheelbase |
1.92m |
|
Safe ua hauj lwm load |
320kg ua |
Yam tsawg kawg nkaus tig vojvoog (lub log sab hauv) |
0 |
|
Extended platform SWL |
100 kg |
Yam tsawg kawg nkaus tig lub vojvoog (lub log sab nraud) |
2.35m |
|
Qhov siab ua haujlwm siab tshaj plaws (A) |
14m |
Lifting motor / tsav lub cev muaj zog |
4.5kw / 24v |
|
Qhov siab tshaj plaws platform (B) |
12m |
Tshuab mus ceev (retraction state) |
3.5 km / h |
|
Zuag qhia tag nrho ntev (C) |
2.46m |
Tsav ceev ntawm lub tshuab (lifting status) |
0.8 km / h |
|
Dav ntawm lub tshuab tiav (D) |
1.18m |
Nce / Poob Ceev |
4-6m / min |
|
Zuag qhia tag nrho qhov siab ( laj kab tsis folded) |
2.60m |
roj teeb cia |
4 * 6V 200Ah |
|
Zuag qhia tag nrho qhov siab ( laj kab folding) (E) |
2.09m |
charger |
24v/30A |
|
Platform qhov ntev (ntev x dav (F)) |
2.3m*1.14m |
Max Climb Capability |
25% |
|
Platform extension loj (G) |
0.9m |
Lub kaum sab xis ua haujlwm siab tshaj plaws (hauv tsev / sab nraum zoov) |
3 degree |
|
Yam tsawg kawg nkaus hauv av clearance (retraction state) |
0.1m |
Lub log |
Φ381 * 127 hli |
|
Yam tsawg kawg nkaus hauv av clearance (lifting status) |
0.02m |
Qhov hnyav ntawm lub tshuab ua tiav |
2 950kg |
Khoom Paub meej
Khoom nta
1.Featuring lub compact thiab robust qauv, chav tsev no muaj kev nyab xeeb thiab txhim khu kev qha, muaj peev xwm tiv taus txawm txhua hnub, siab - siv zaus yam tsis muaj teeb meem.
2.Lub lifting mechanism yog ruaj khov thiab meej, effortlessly tsa hnyav -tonnage loads. Nws cov hydraulic system suav nrog kev tiv thaiv - jamming thiab overload tiv thaiv nta, ua kom muaj kev nyab xeeb.
3.Cov txheej txheem nqa yog du thiab tsis muaj kev vibration; Ua tsaug rau nws lub cev compact, chav tsev yog qhov yooj yim heev rau kev siv txhua hnub thiab kev saib xyuas niaj hnub.
4.Nws boasts ib tug muaj zog load-cov kabmob muaj peev xwm, muab kev ua haujlwm siab, thiab ua haujlwm nrog lub suab nrov tsawg.
5.A ntau yam khoom siv sib xws yog muaj los ua kom tau raws li cov kev cai tshwj xeeb ntawm ntau yam kev thov.
Khoom siv
Tuam txhab Profile
Peb Qhov Zoo
- Comprehensive Control: Raws li cov chaw tsim khoom siv peb lub Hoobkas, peb nruj me ntsis saib xyuas txhua theem ntawm kev tsim khoom kom ntseeg tau tias qhov zoo ntawm txhua qhov hluav taws xob txiab nqa tau raws li peb cov qauv nruj.
- Kev hloov pauv hloov tau yooj yim: Peb txhawb nqa ntawm -xav tau customization, tso cai rau koj xaiv qhov siab, xim, thiab nta; peb tuaj yeem tsim cov kev daws teeb meem tsim tshwj xeeb rau koj qhov chaw ua haujlwm.
- Kev teb sai: Kev txiav txim thiab kev thov kev hloov pauv tau ua tiav ncaj qha ntawm peb lub chaw, ua kom lub sijhawm teb sai, lub sijhawm luv luv, thiab kev ua haujlwm zoo dua.
- Kev Pabcuam Kev Pabcuam: Ib pab pawg kws tshaj lij muab kev pabcuam kawg -rau- xaus kev txhawb nqa los ntawm kev sab laj thawj zaug mus txog tom qab kev muag khoom kom ntseeg tau tias koj tau txais kev pabcuam txhim khu kev qha ntawm txhua kauj ruam.
- Kev lees paub zoo: Txhua chav ua haujlwm dhau los ntawm kev sim nruj ua ntej tawm hauv peb lub Hoobkas los lav qhov kev ua haujlwm ruaj khov thiab txhim khu kev qha, muab peb cov neeg siv ua tiav kev thaj yeeb ntawm lub siab.
