Khoom Taw Qhia

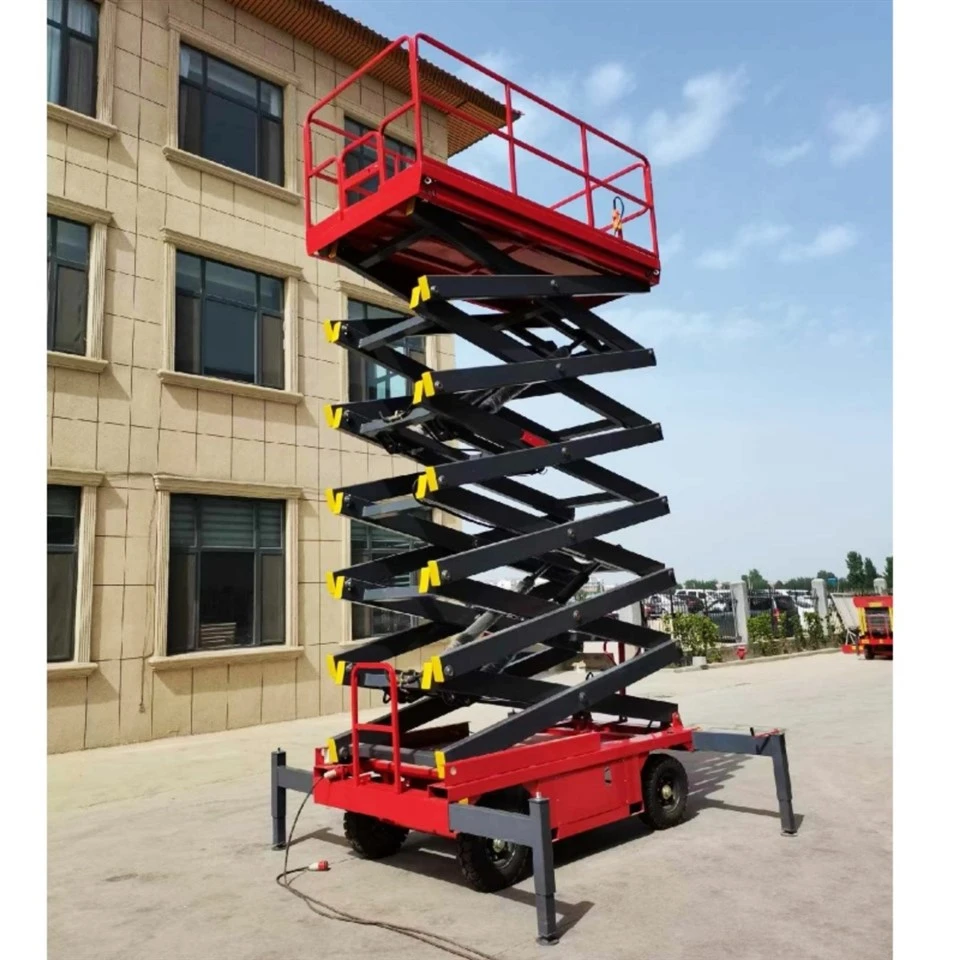

Nruab nrog lub zog ruaj khov hluav taws xob hydraulic lifting system, qhov no 10m Towable Scissor Lift smooth lifting and landing performance with low sound and zero exhaust emissions. Ua nrog hnyav -lub luag haujlwm manganese steel txiab caj npab thiab ib qho kev sib xyaw ua ke tuab, lub tshuab tswj kev ruaj ntseg zoo txawm tias nws qhov siab tshaj plaws ua haujlwm 10m. Nws txhawb nqa kev ua haujlwm ntawm cov neeg ua haujlwm thiab cov cuab yeej nqa, zoo kawg nkaus daws qhov siab ua haujlwm nyuaj hauv kev tsim kho, kev saib xyuas, kev teeb tsa thiab kev ua haujlwm tu.
Nruab nrog lub zog ruaj khov hluav taws xob hydraulic lifting system, qhov no 10m Towable Scissor Lift smooth lifting and landing performance with low sound and zero exhaust emissions. Ua nrog hnyav -lub luag haujlwm manganese steel txiab caj npab thiab ib qho kev sib xyaw ua ke tuab, lub tshuab tswj kev ruaj ntseg zoo txawm tias nws qhov siab tshaj plaws ua haujlwm 10m. Nws txhawb nqa kev ua haujlwm ntawm cov neeg ua haujlwm thiab cov cuab yeej nqa, zoo kawg nkaus daws qhov siab ua haujlwm nyuaj hauv kev tsim kho, kev saib xyuas, kev teeb tsa thiab kev ua haujlwm tu.
Khoom Parameters
|
Yam khoom
|
Specification
|
|
Max Platform Qhov siab
|
10m
|
|
Max Ua Haujlwm Qhov siab
|
11.8m
|
|
Rated Load Capacity
|
320kg (2 tus neeg + cuab yeej)
|
|
Platform Loj
|
2000mm × 1000mm (customizable)
|
|
Lifting Fais Fab Hom
|
Hluav taws xob hydraulic (220V / 380V yeem)
|
|
Tsav hom
|
Towable trailer hom
|
|
Gradeability
|
15% tiaj tus thiab maj mam nqes hav adaptation
|
|
Hom kev ua haujlwm
|
Platform sab sauv tswj + hauv av qis tswj
|
|
Kev Tiv Thaiv Kev Nyab Xeeb
|
Kev tiv thaiv overload, nres thaum muaj xwm ceev, tiv thaiv - qaij tiv thaiv, hydraulic tiv thaiv - poob valve
|
|
Zuag qhia tag nrho Dimension (Folded)
|
5200mm × 1500mm × 2100mm
|
|
Qhov hnyav
|
1850kg ib
|
Khoom Paub meej
Txhua qhov nthuav dav ntawm 10m towable txiab nqa tau zoo rau kev siv qhov chaw ua haujlwm tiag tiag, tsom rau kev ua haujlwm ntev, kev nyab xeeb thiab kev ua haujlwm:
1 Reinforced Scissor Arm Structure
Txais siab siab -lub zog manganese steel ib qho tseem ceeb stamping txiab caj npab, nrog cov phaj tuab tuab thiab muaj zog pin ncej txuas. Tag nrho cov qauv tsis yooj yim rau deform tom qab ntev - lub sij hawm siab - qhov siab load ua haujlwm, kom ruaj khov lifting yam tsis muaj co. Cov txheej txheem ntau- txheej txheej txheej txhawb nqa zoo heev txhim kho cov cuab yeej cua tiv thaiv thiab kev ua haujlwm zoo.
2 ruaj khov Hydraulic Lifting System
Nruab nrog kev lag luam -qib twj tso kua mis hydraulic twj tso kua mis thiab cov khoom sib khi tuaj. Lub lifting ceev yog uniform thiab adjustable, tsis muaj jitter los yog roj to. Lub ua tau -nyob rau hauv hydraulic anti- lub caij nplooj zeeg valve tuaj yeem kaw lub platform tam sim ntawd thaum lub raj xa hluav taws xob tsis ua haujlwm, tiv thaiv kom tsis txhob ntog thiab ua kom cov neeg siv kev nyab xeeb.
3 Dual Control System
Txhawb nqa ob txoj haujlwm ntawm lub platform sab saud thiab hauv av console. Cov neeg ua haujlwm tuaj yeem kho qhov siab nqa qhov siab ntawm lub platform thaum lub sijhawm ua haujlwm, thiab cov neeg ua haujlwm hauv av tuaj yeem tswj cov khoom siv rau kev debugging thiab cawm thaum muaj xwm txheej ceev. Lub khawm ua haujlwm yog yooj yim thiab intuitive, tsis muaj kev cob qhia kev cob qhia yog xav tau rau kev ua haujlwm yooj yim.
4 Portable Towable Trailer Tsim
Kev sib xyaw hnyav- lub luag haujlwm trailer chassis nrog universal traction connector, sib xws nrog feem ntau engineering tsheb thiab tsheb. Nruab nrog cov khoom coj los siv- cov log tsheb tiv taus thiab cov cuab yeej nres tsheb, cov cuab yeej tuaj yeem nres ruaj khov rau hauv av tiaj tus thiab txav tau yooj yim ntawm kev tsim kho. Foldable tsim txuag chaw cia thaum tsis siv.
5 Kev Txhim Kho Kev Nyab Xeeb Kev Nyab Xeeb
Los nrog tus qauv overload tsis siv neeg lub tswb thiab lub zog txiav kev tiv thaiv muaj nuj nqi. Nruab nrog khawm nres thaum muaj xwm ceev, kev tiv thaiv kev nyab xeeb, tiv thaiv - plam platform mesh thiab txhawb nqa txhais ceg. Plaub tus kheej hydraulic txhawb nqa ob txhais ceg kom ntseeg tau tias muaj kev sib cuag nrog hauv av, tshem tawm kev co txaus ntshai thaum lub sijhawm ua haujlwm siab - qhov siab.

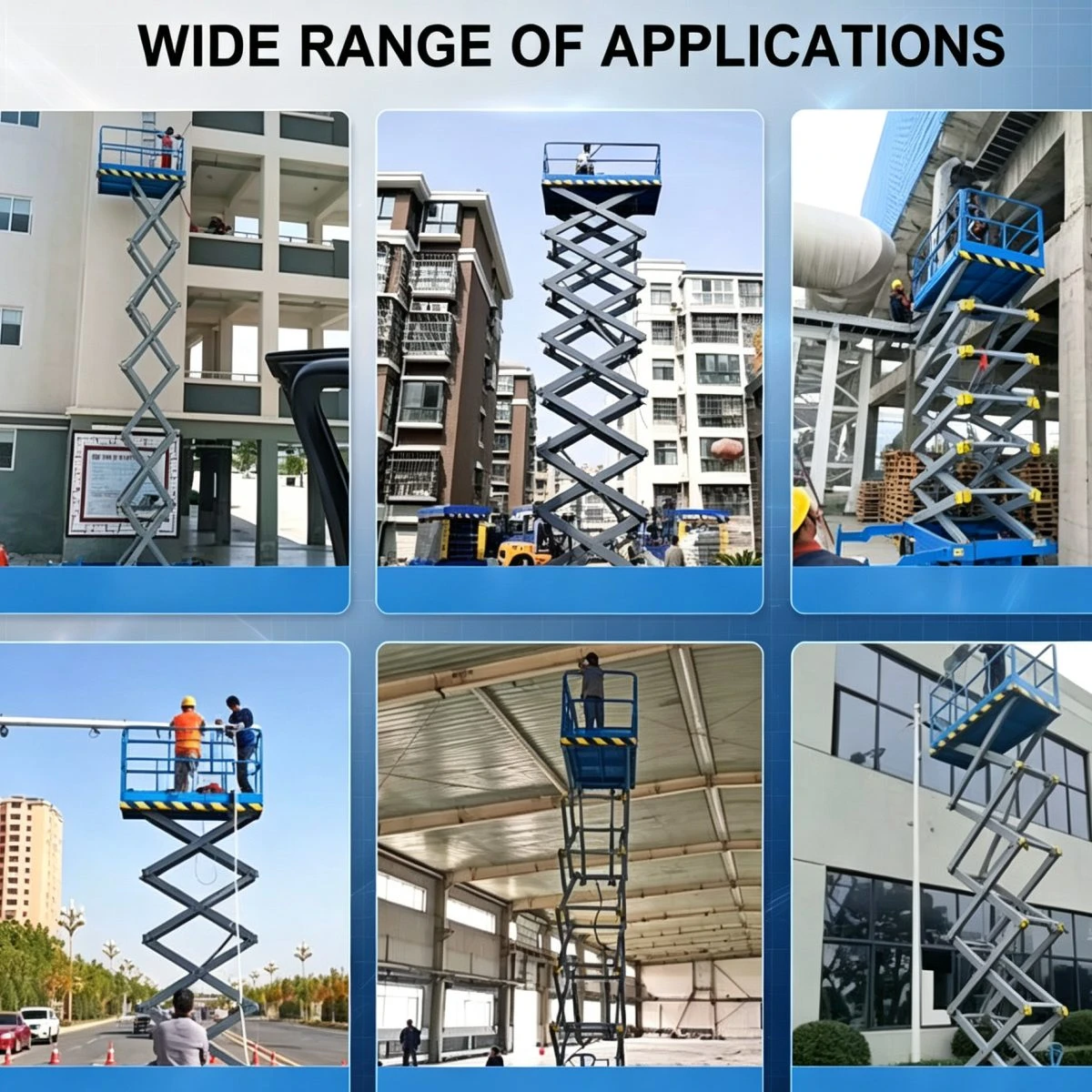

Cov khoom siv Scenarios
Lub 10m towable scissor nqa nta hloov tau yooj yim, xoom emission thiab dav siv tau, npog yuav luag txhua qhov kev ua haujlwm siab -qhov siab qhov chaw ua haujlwm rau sab hauv tsev thiab sab nraum zoov kev lag luam thiab kev lag luam siv:
1 Kev tsim kho thiab kho dua tshiab engineering
Zoo tagnrho rau sab hauv qab nthab installation, phab ntsa painting, pipeline nteg, hluav taws xob thaiv thiab sab nraum zoov lub tsev facade tu, qhov rais installation, sab nrauv phab ntsa tu. Nws hloov cov ntaiv txaus ntshai thiab kev ua haujlwm scaffold, txhim kho kev tsim kho kev nyab xeeb thiab ua haujlwm zoo.
2 Warehouse & Logistics Kev Lag Luam
Haum rau cov khoom txee siab sorting, kev tshuaj xyuas cov khoom muag, cov khoom siv cua txias thiab cov khoom siv teeb pom kev zoo hauv cov tsev khaws khoom loj thiab cov chaw logistics. Cov qauv tsim yooj yim towable tso cai rau kev txav mus los ntawm thaj chaw warehouse, daws qhov teeb meem kev ua haujlwm siab ntawm siab - qhov chaw khaws cia ceev.
3 Municipal & Public Maintenance
Dav siv rau kev hloov lub teeb pom kev zoo, kev saib xyuas kev tsheb khiav, kev teeb tsa thiab kev tu vaj tse, chaw nres tsheb ntsuab trimming thiab kev tu vaj tse hauv zej zog. Cov cuab yeej yog lub teeb yuag thiab yooj yim rau kev thauj mus los, ua tau raws li qhov xav tau ntawm ntau- taw tes thiab kev ua haujlwm hauv nroog.
4 Kev lag luam chaw ua haujlwm
Muaj feem xyuam rau lub rooj nthuav qhia, khw muag khoom, ua yeeb yam thiab chaw ntau pob txhua hnub, kev teeb tsa teeb pom kev zoo, banner hanging, cov cuab yeej qab nthab tshuaj xyuas thiab kho. Tsis tshua muaj suab nrov thiab xoom muaj kuab paug yuav tsis cuam tshuam rau kev ua haujlwm ntawm cov chaw lag luam.
Ntim thiab xa khoom
Peb tau txais cov txheej txheem export ntim thiab kev lag luam kev daws teeb meem rau 10m towable txiab nqa kom ntseeg tau cov khoom siv tsis zoo rau cov neeg siv khoom thoob ntiaj teb:
Tag nrho cov cav tov tau kuaj xyuas tag nrho thiab debugged ua ntej xa khoom kom paub tseeb tias xoom txhaum ua ntej xa khoom. Tag nrho hydraulic towable txiab nqa tshuab yog qhwv nrog cov dej tsis muaj dej thiab plua plav- cov ntaub ntawv yas pov thawj, thiab cov khoom tseem ceeb xws li hydraulic system thiab cov khoom siv hluav taws xob tau ntim nrog npuas thiab thawv rau kev tiv thaiv kev sib tsoo. Rau FCL kev xa tawm, cov cuab yeej tau kho nrog cov hlua steel hlau thiab ntoo tuav hauv lub thawv kom tsis txhob muaj kev sib tsoo thiab kev sib tsoo thaum lub sij hawm ntev - kev thauj mus los.
Hoobkas Profile
Peb yog cov chaw tsim khoom lag luam tsom mus rau R & D, tsim khoom thiab muag cov khoom siv dav hlau ua haujlwm, nrog ntau tshaj 10 xyoo ntawm kev tsim khoom hauv kev nqa nqa, boom nqa thiab towable lifting platforms. Lub Hoobkas npog thaj tsam ntawm ntau tshaj 20,000 square meters, nruab nrog niaj hnub tsis siv neeg cov kab ntau lawm, precision ua cov cuab yeej thiab cov chaw soj ntsuam kev tshaj lij.
Kev cog lus rau kev pabcuam
Peb ua raws li cov neeg siv khoom- kev pabcuam kev coj ua, muab tag nrho- voj voog ua ntej- muag, hauv- muag thiab tom qab- kev pabcuam kev muag khoom kom tshem tawm tag nrho cov neeg siv khoom txhawj xeeb:
1 Pre-Kev Pabcuam Muag
Muab cov txheej txheem kev tshaj lij pub dawb raws li tus neeg siv khoom ua haujlwm, qhov siab thiab qhov yuav tsum tau ua. Muab 24-teev kev sib tham hauv online, xa cov ncauj lus kom ntxaws txog cov khoom, duab, yeeb yaj duab thiab cov lus hais. Txhawb kev kuaj dawb lub Hoobkas thiab ua qauv qhia cov khoom siv hauv tsev.
2 Hauv -Kev Muag Khoom
Ua tib zoo siv cov qauv tsim khoom, ua tiav lub tshuab debugging thiab tshuaj xyuas zoo ua ntej xa khoom. Muab lub sijhawm tiag tiag - tshawb nrhiav kev tsim khoom, kev ntim khoom thiab kev thauj mus los, thiab ua tiav cov ntaub ntawv xa tawm. Txhawb customized logo, xim thiab khoom configuration.
3 Tom qab-Kev Pabcuam Muag
Muab 1-xyoo tag nrho diesel towable txiab nqa tshuab warranty thiab kev pab cuam kho lub neej. Tsis pub dhau lub sijhawm lav, hloov pauv dawb ntawm cov khoom puas uas tsis yog - tib neeg puas tsuaj thiab cov kev taw qhia dawb. Muab 24-teev online tom qab- kev txhawb nqa muag, daws cov khoom lag luam thiab cov teeb meem tsis ua haujlwm nyob deb ntawm thawj zaug. Rau cov neeg muas zaub txawv teb chaws, muab kev cob qhia kev ua haujlwm video thiab kev saib xyuas, thiab txhawb nqa cov neeg ua haujlwm txawv teb chaws qhov rooj-rau-qhov rooj rau kev txiav txim loj.
Cim npe nrov: 10m towable scissor nqa tus nqi, Tuam Tshoj 10m towable txiab nqa tus nqi manufacturers, lwm tus neeg, Hoobkas
